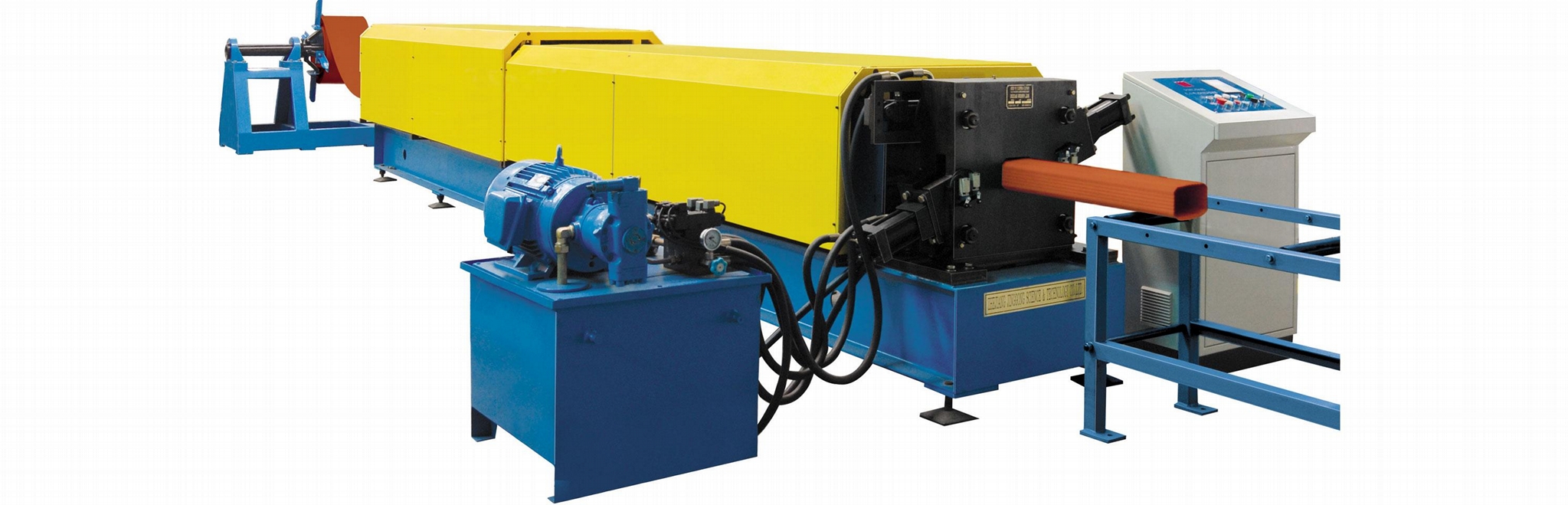

This downspout roll forming machine can produce the sealed color water pipes by forming the colored steel sheet and whipstitch it. The downspout forming machine adopts a PLC control system, AC frequency conversion speed-adjust technology, therefore it can automatically cut to length. This is the original color steel downpipe roll forming machine in China with carious freedom intellectual property and national patent.
The most standard size is 134*93mm and 153*106mm, and the suitable coil thickness and strength range is 0.5-0.6mm, 235-345Mpa for reference. After down pipe forming, we also have the curving pipe forming machine.
We can design and manufacture downspout machines for forming different profiles according to customers' requirements.
Downspout machines / Downpipe machine for sale on jinggongmachine.com, feel free to contact us!
Parameter Of Downspout Roll Forming Machine
|
Item
|
Parameter
|
|
Model
|
HS-134
|
HS-118
|
|
Downpipe section specification
|
134×93
|
118×89
|
|
Material
|
Type
|
Color steel sheet
|
|
|
Thickness
|
0.45-0.55
|
|
|
Yield strength
|
230-300
|
|
Forming speed
|
10
|
|
Roller material
|
45# Steel with chrome-plated
|
|
Roller driven type
|
Chain transmission
|
|
Controller
|
PLC
|
|
Operation
|
Touch screen+button
|
|
Hydraulic system pressure
|
12
|
|
Hydraulic station motor power
|
7.5
|
|
Main motor power
|
3
|
|
Total power
|
10.5
|
|
Total weight
|
8000
|
Technics flow Of Downspout Roll Forming Machine
Decoiling →guiding and feeding→roll forming →cut to length →run out table
Panel Drawings Of Downspout Roll Forming Machine
