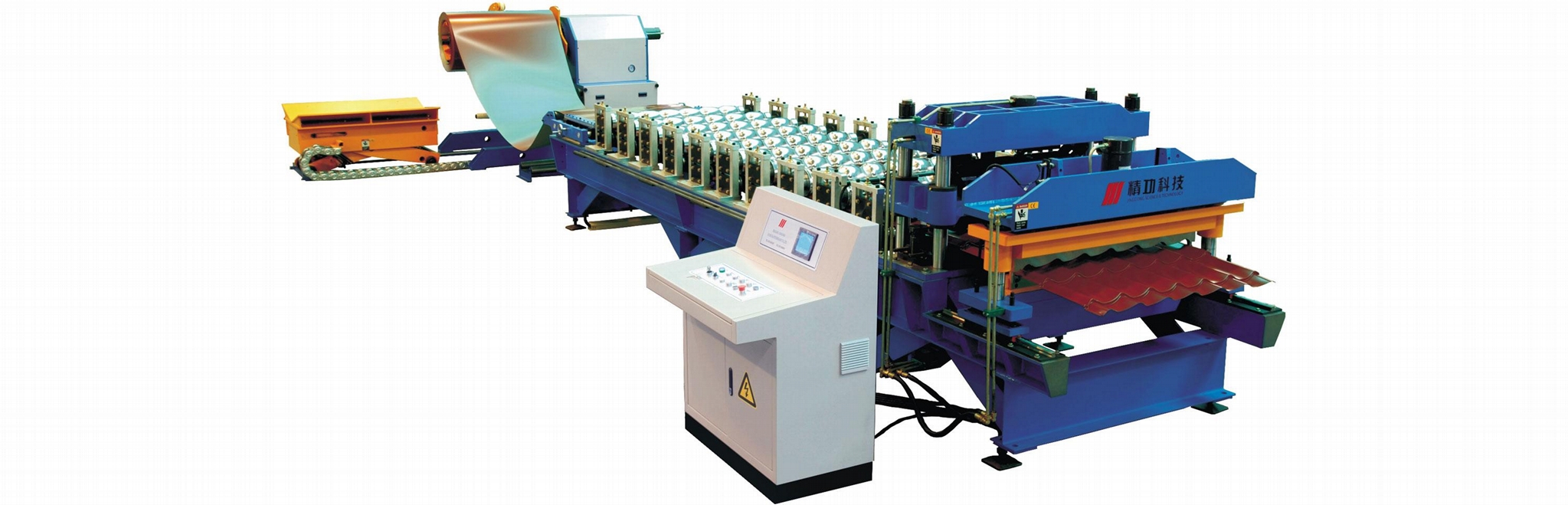

This series of high speed tile roll forming machine is a new-generational type roof tile roll forming machine with high speed and high-efficient, including decoiler system, sheet guiding system, roll forming system, pressing system, cutting system, auto-stacker system, hydraulic system, controlling system, etc.The common thickness for final products is normally 0.4-0.8mm to different profiles and materials. We also have other roll forming machines, like the ridge cap and downpipe machines for roof use.
Tile roll forming machine for sale on jinggongmachine.com, contact us right now!
Technical Parameter Of High Speed Roll Forming Machine
|
Item
|
parameter
|
|
Modle
|
HVM-183
|
|
Material
|
Type
|
Colored steel sheet
|
|
|
Thickness
|
0.4-0.7
|
|
|
Yield strength
|
230-300
|
|
Max.Forming speed
|
4-5
|
|
Roller material
|
45#Steel with chrome coated
|
|
Roller driven type
|
Chain transmission
|
|
Controller
|
PLC
|
|
Operation
|
Touch screen+button
|
|
Hydraulic system pressure
|
13
|
|
Hydraulic station motor power
|
7.5
|
|
Main motor power
|
4
|
|
Total power
|
11.5
|
|
Total weight
|
About 10000
|
Technic Flow Of High-Speed Tile Forming Machine
Decoiling→guiding and feeding→roll forming→pressing→cut to length→run out table
Panel Drawings Of High Speed Tile Forming Machine
